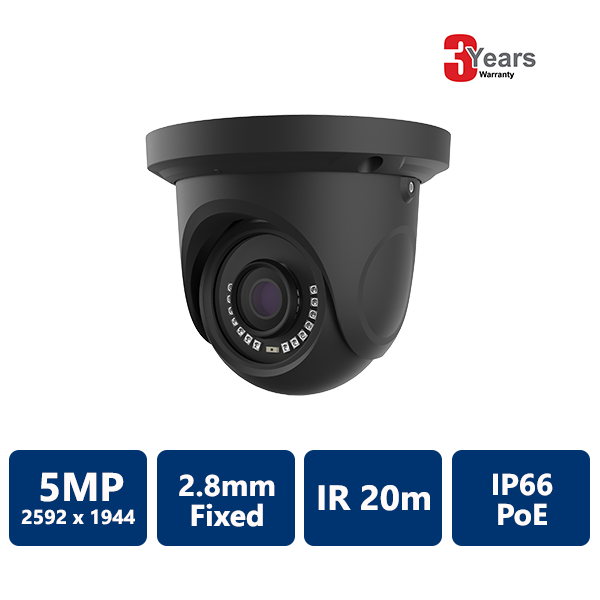

EYEONET 5MP IP IR Water-resistant Eyeball, 2.8mm fixed, Grey
Regular price
$149.99
Sale
|
Model Specifications |
IP619E5G-28 |
| Camera | |
| Image Sensor | 1 / 2.7 "CMOS |
| Image Size | 2592 × 1944 |
| Electronic Shutter | 1 / 25 s ~ 1 / 100000 s |
| Iris Type | Fixed iris |
| Min. Illumination | 0.013 lux @F1.2,AGC ON; 0 lux with IR |
| Lens | 2.8 mm fixed |
| Lens Mount | M12 |
| Day & Night | ICR |
| Wide Dynamic Range | Digital WDR |
| Digital NR | 3D DNR |
| Angle Adjustment | Any angle |
| Image | |
| Video Compression | H.265 / H.264 / MJPEG |
| H.265 Compression Standard | Main Profile @Leve4.1 High Tier |
| Resolution |
5MP(2592×1944), 4MP (2592×1520), 2K ( 2560×1440 ), 3MP(2304 ×1296), 1080P ( 1920×1080 ), 720P ( 1280×720 ), D1, CIF, 480×240 |
| Main Stream |
60Hz : 5MP( 1 ~ 20fps ) / 4MP (1~30fps) / 2K(1 ~ 30fps ) / 3MP(1 ~ 30fps ) /1080P(1 ~ 30fps ) /720P(1 ~ 30fps ) 50Hz : 5MP( 1 ~ 20fps ) / 4MP (1~30fps) / 2K( 1 ~ 25fps ) / 3MP(1 ~25fps ) /1080P(1 ~ 25fps ) /720P(1 ~ 25fps ) |
| Bit Rate | 128 Kbps ~ 10 Mbps |
| Bit Rate Type | VBR / CBR |
| Quality | Five levels under VBR; Freely adjustable under CBR |
| Image Settings | ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR, Antiflicker, etc. adjustable through client software or web browser |
| ROI | Each ROI to be configured separately |
| Interfaces | |
| Network | RJ45 |
| Functions | |
| Remote Monitoring | Web browsing, CMS remote control |
| Online Connection | Support simultaneous monitoring for up to 6 users; Support multi-stream real time transmission |
| Network Protocol | IPv4, IPv6, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, 802.1x, QoS |
| Interface Protocol | ONVIF |
| Storage | Network remote storage |
| Smart Alarm | Motion alarm |
| PoE | Yes |
| IR Distance | 20m |
| Ingress Protection | IP66 |
| Others | |
| Power Supply | DC12V /PoE power supply |
| Power Consumption | < 6W |
| Operating Environment | - 30°C ~ 60°C,humidity 95% or less (non-condensing) |
| Dimensions ( mm ) | Φ 91.4 × 108 |
| Weight ( net ) | 404g |
| Installation | Ceiling mounting ( Wall mounting available with the junction box and bracket |
