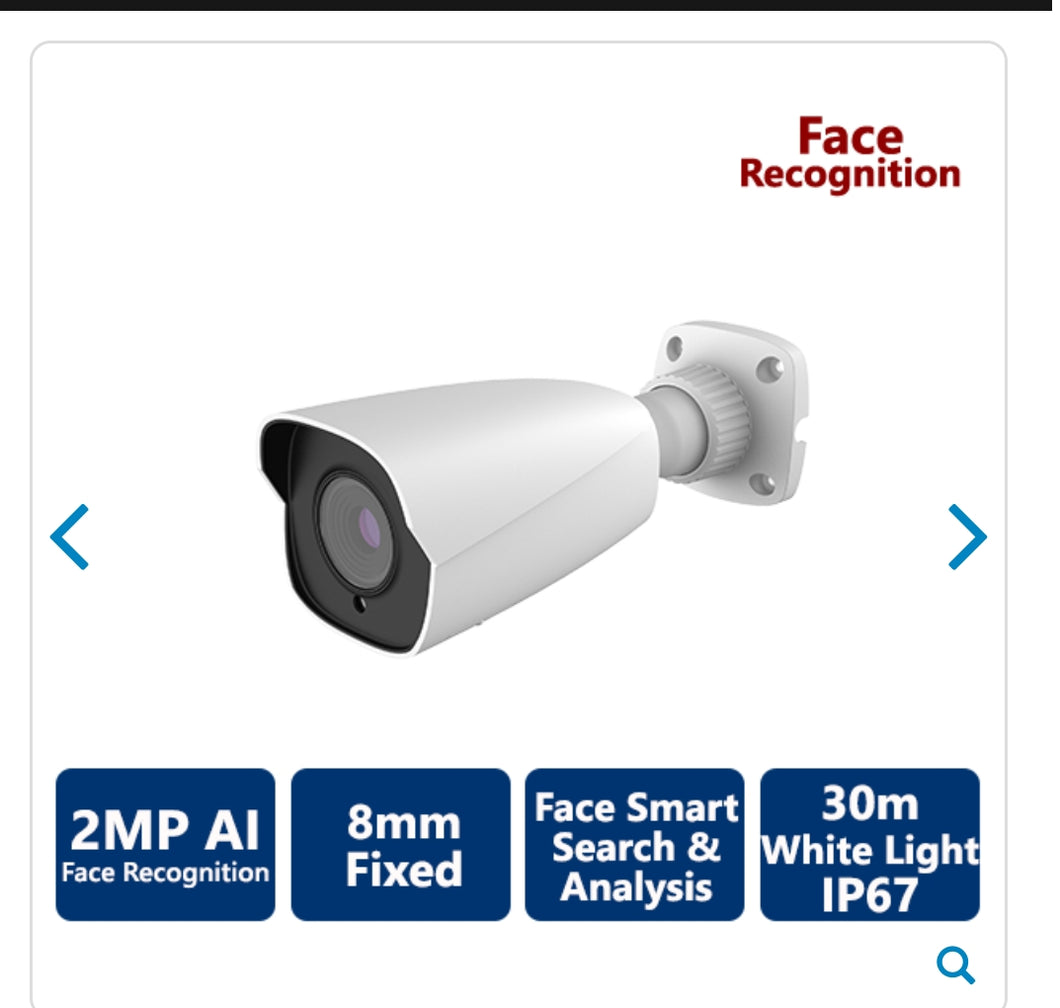

Eyeonet 2MP IP BULLET CAM
Regular price
$469.99
$439.99
Sale
- 2MP ( 1920 x 1080 ) full real time coding
- 30m white light view distance
- 3D DNR, digital WDR, BLC, HLC, Defog
- One CVBS output and one one-board CVBS output
- One MIC IN; Hardware Reset
- Built-in micro SD card slot, up to 128GB
- DC12V/PoE power supply
- Support P2P remote monitoring
- IP67 ingress protection
- Support face detection
- Intelligent Analytics (optional): object removal detection, abnormal video signal detection, line crossing detection, region intrusion detection, people intrusion detection, people counting detection and crowd density detection
| Specifications | CAM-IP6792-Z-S-AI | |
| Camera | ||
| Image Sensor | 1 / 2.8 "CMOS | |
| Image Size | 1920 × 1080 | |
| Electronic Shutter | 1 / 25 s ~ 1 / 100000 s | |
| Iris Type | Fixed Iris | |
| Min. Illumination | 0 lux | |
| Lens | 7~22mm@F1.4, horizontal FoV: 37°~22.5°; recommended face capturing distance: 5~15m | |
| Lens Mount | Φ14 | |
| Wide Dynamic Range | Digital WDR | |
| BLC | Yes | |
| HLC | Yes | |
| Defogging | Yes | |
| Digital NR | 3D DNR | |
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~90°; Rotation: 0°~360° | |
| Image | ||
| Video Compression | H.265 / H.264 / MJPEG | |
| H.264 Compression Standard | Baseline Profile/Main Profile/High Profile | |
| Resolution | 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240 | |
| Main Stream | 60Hz : 1080P/ 720P (1 ~ 30fps ); 50Hz : 1080P/ 720P (1 ~ 25fps ) | |
| Sub Stream | 60Hz : D1/CIF (1~30fps); 50HZ:D1/CIF (1~25fps) | |
| Third Stream | 60Hz : CIF/480x240 (1~30fps); 50HZ: CIF/480x240 (1~25fps) | |
| Bit Rate | 128 Kbps ~ 6 Mbps | |
| Bit Rate Type | VBR / CBR | |
| Image Settings | ROI, Saturation, Brightness, Chroma, Contrast,Wide Dynamic, Sharpen, NR,etc. adjustable through client software or web browser | |
| ROI | Each ROI to be configured separately | |
| Interfaces | ||
| Network | RJ45 | |
| Video Output | CVBS output (BNC × 1); one on-board CVBS output | |
| Audio | 1CH audio input; 1CH audio output | |
| Storage | Built-in micro SD card slot, up to 128GB | |
| Hardware Reset | Yes | |
| RS 485 | Yes | |
| Alarm | 1CH alarm input; 1CH alarm output | |
| Functions | ||
| Remote Monitoring | Web browsing,CMS remote control | |
| Online Connection | Support simultaneous monitoring for up to 6 users; Support multi-stream real time transmission | |
| Network Protocol | Ipv4, IPv6, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, 802.1x, UPnP, HTTPs, QoS | |
| Interface Protocol | ONVIF | |
| Storage | Network remote storage; micro SD card storage | |
| Smart Alarm | Motion detection; Sensor alarm; SD card full; SD card error; IP conflict; Network disconnection | |
| Intelligent Analytics | Object removal detection, regional intrusion detection, abnormal video detection, line crossing detection, people intrusion, people counting, crowd density, face detection (optional) | |
| General function | Watermark, IP address filtering, video mask, heartbeat, password protection | |
| PoE | Yes (802.3af) | |
| LED View Distance | 50 m | |
| Ingress Protection | IP67 | |
| Face Detection | ||
| Face Detection | Pupil distance of a facial image over 20 pixel can be detected | |
| Face Capturing | By precision detecting, tracing, capturing, scoring and screening the moving faces to get the most effective face snapshots | |
| Panorama Capturing | Support panorama capturing and self-defined information overlay, like device ID, time, etc. | |
|
Intelligent Light Compensation |
Built-in high efficient white light LEDs, time switch available | |
| Others | ||
| Power Supply | DC12V/AC24V/PoE | |
| Power Consumption | < 12W | |
| Operating Environment |
- 30 °C ~ 60 °C (-22°F~140°F) Humidity: less than 95 % (non-condensing) |
|
| Dimensions ( mm ) | Φ 100.3 × 279.5 | |
| Weight ( net ) | Approx. 1.06KG | |
| Installation | Wall mounting; ceiling mounting | |
