1080P real time image, high resolution, true color
- 4-In-1, CVI/TVI/AHD/CVBS, TVI lossless video output
- Up to 1000 TVL resolution
- CMOS progressive scan, perfectly capture the moving object
- Support OSD menu
- High speed, long distance, real time transmission
- Auto color to B / W at low illumination
- Support ICR switch, true day / night
- Support noise reduction function
- 20m IR night view distance
- IP66 ingress protection
- Support COC
| Model Specifications |

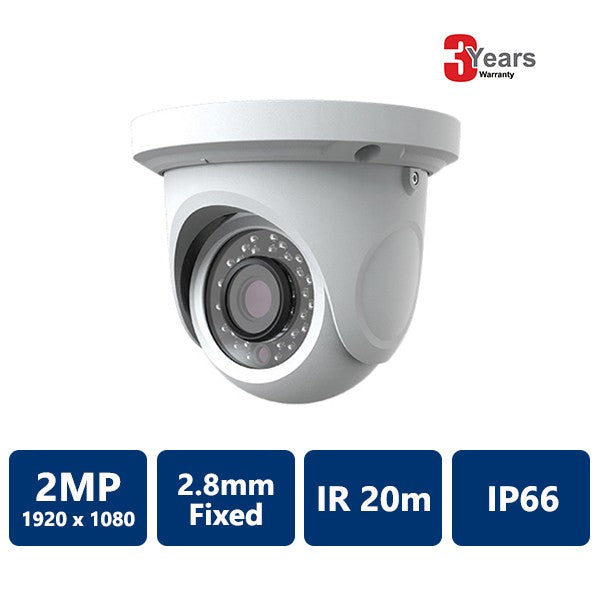

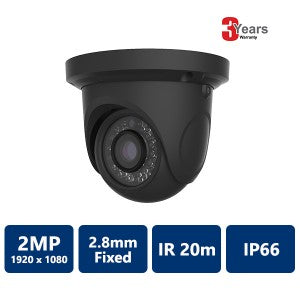

CAM-HD-IX6172G-28-S2 |
| Camera |
| Image Sensor |
1 / 2.9 "CMOS |
| Resolution |
2MP |
| Image Size |
1920 x 1080 |
| Video Output |
AHD / TVI / CVI / CVBS |
| Image System |
PAL / NTSC |
| Electronic Shutter |
Auto; 1 / 50s ~ 1 / 100000s ( PAL );
1 / 60s ~ 1 / 100000s ( NTSC )
|
| IR Distance |
20 m |
| Frame Rate |
30fps ( 60Hz ), 25fps ( 50Hz ) |
| Min. Illumination |
0 Lux ( IR ON ) |
| Lens |
2.8 mm |
| Lens Mount |
M12 |
| S / N Ratio |
≥52dB ( AGC OFF )
|
| Ingress Protection |
IP66 |
| Functions |
| Function Control |
OSD ( COC Control ) |
| Day & Night |
ICR |
| Digital WDR |
Yes |
| Digital NR |
Yes |
| Global Exposure |
Yes |
| Central Exposure |
Yes |
| AGC |
Yes |
| Auto White Balance |
Yes |
| BLC |
Yes |
| Front Light Compensation |
Yes |
| Sharpness |
Yes |
| Smart IR |
Yes |
| Image Setting |
Yes |
| Defect Correction |
Auto |
| Language |
English |
| Angle Adjustment |
Any angle |
| Others |
| Power Supply |
DC12V ( ± 10% )
|
| Power Consumption |
Day : < 1W; Night : < 4W |
| Working Environment |
- 20 °C ~ 50 °C, 10 % ~ 90 %（relative humidity）
|
| Dimensions ( mm ) |
Ф87 x 108 |
